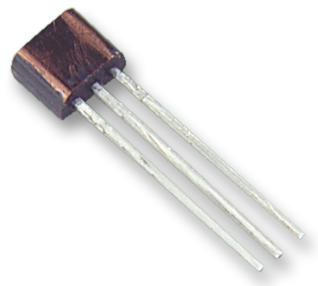

ZTX705 Darlington Transistor, E-Line Diodes Inc.

DIODES INC.UGS :ZTX705 Code de commande:9525963

Prix:
Prix ​​promotionnel€2,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3143 unité)

Documents et téléchargements

description

DIODES INC. - ZTX705 - Bipolar (BJT) Single Transistor, Darlington, PNP, 120 V, 1 A, 1 W, TO-226AA, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: -120V
  • Transition Frequency ft: 160MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: -1A
  • DC Current Gain hFE: 3000hFE
  • Transistor Case Style: TO-226AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2019)
  • Av Current Ic: 1A
  • Collector Emitter Saturation Voltage Vce(on): -1.3V
  • Continuous Collector Current Ic Max: 1A
  • Current Ic Continuous a Max: 1A
  • Current Ic hFE: 1A
  • Device Marking: ZTX705
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Typ: 160MHz
  • Hfe Min: 3000
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Power Dissipation Ptot Max: 1W
  • Transistor Type: Darlington
  • Voltage Vcbo: 140V
