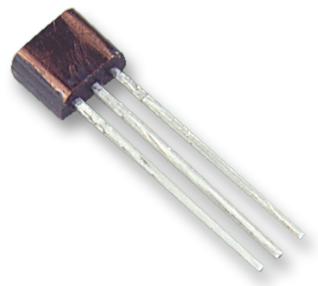

DIODES INC. - ZTX605 - Bipolar (BJT) Single Transistor, Darlington, NPN, 120 V, 1 A, 1 W, TO-92, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 120V
- Transition Frequency ft: 150MHz
- Power Dissipation Pd: 1W
- DC Collector Current: 1A
- DC Current Gain hFE: 5000hFE
- Transistor Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Av Current Ic: 1A
- Collector Emitter Saturation Voltage Vce(on): 1V
- Continuous Collector Current Ic Max: 1A
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 1A
- Device Marking: ZTX605
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 150MHz
- Gain Bandwidth ft Typ: 150MHz
- Hfe Min: 2000
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +200°C
- Power Dissipation Ptot Max: 1W
- Transistor Type: Darlington
- Voltage Vcbo: 140V
