description

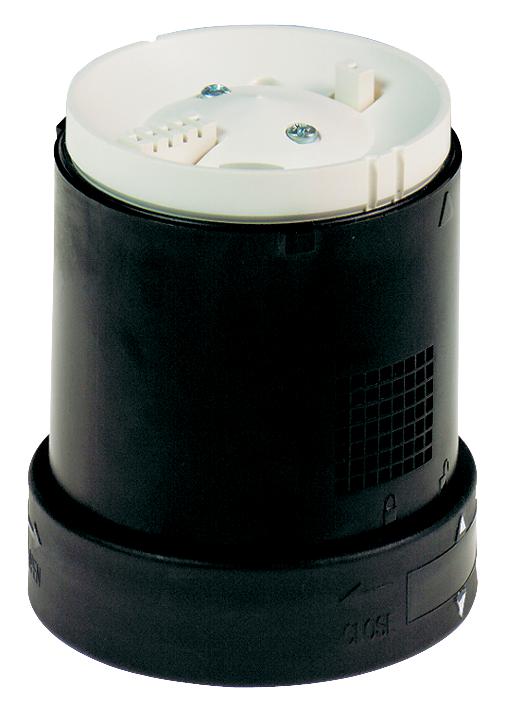

SCHNEIDER ELECTRIC - XVBC9B - Buzzer, Continuous, Intermittent, 90dB, 2.8kHz, 230VDC, 230VAC, 25mA, IP65, 70mm Ext. Depth
- Supply Voltage V AC: 230V
- Supply Voltage V DC: 230VDC
- Tones: Continuous, Intermittent
- Sound Level SPL: 90dB
- IP / NEMA Rating: IP65
- Product Range: XVB Series
- Resonant Frequency: 2.8kHz
- Current Consumption: 25mA
- External Depth: 70mm
- Operating Temperature Min: -25°C
- Operating Temperature Max: 50°C
- SVHC: No SVHC (15-Jan-2018)
- Operating Temperature Range: -25°C to +50°C
- Supply Volts: 120V AC to 230V AC, 120V DC to 230V DC
