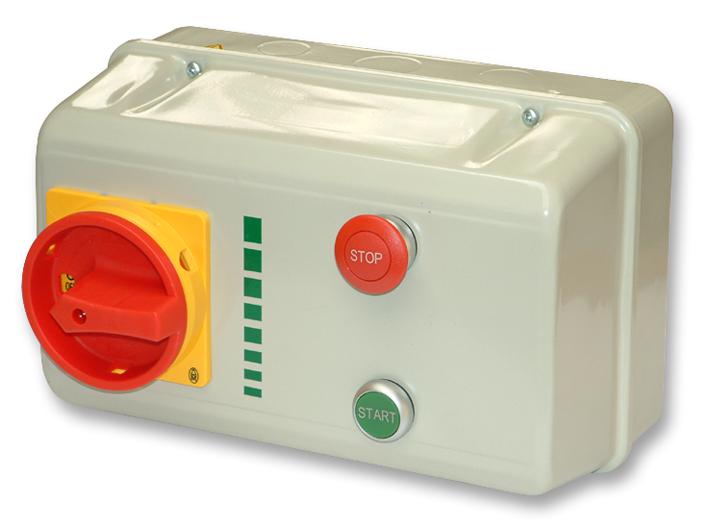

EATON MOELLER - XDP4/ST(400V50HZ) - Motor Starter, Direct On Line, xStart Series, Three Phase, 4 kW, 8.5 A, 400 V
- Supply Voltage Min: -
- Supply Voltage Max: 400V
- No. of Phases: Three Phase
- Power Rating: 4kW
- Current Rating: 8.5A
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- External Depth: 149mm
- External Length / Height: 184mm
- For Use With: Electric Motor
- Full Load Current: 8.5A
- IP / NEMA Rating: IP55
- Load Current Max: 10A
- Load Current Min: 6A
- Operating Frequency: 50Hz
- Supply Voltage: 400VAC
- Switching AC3 Power Max: 4kW
