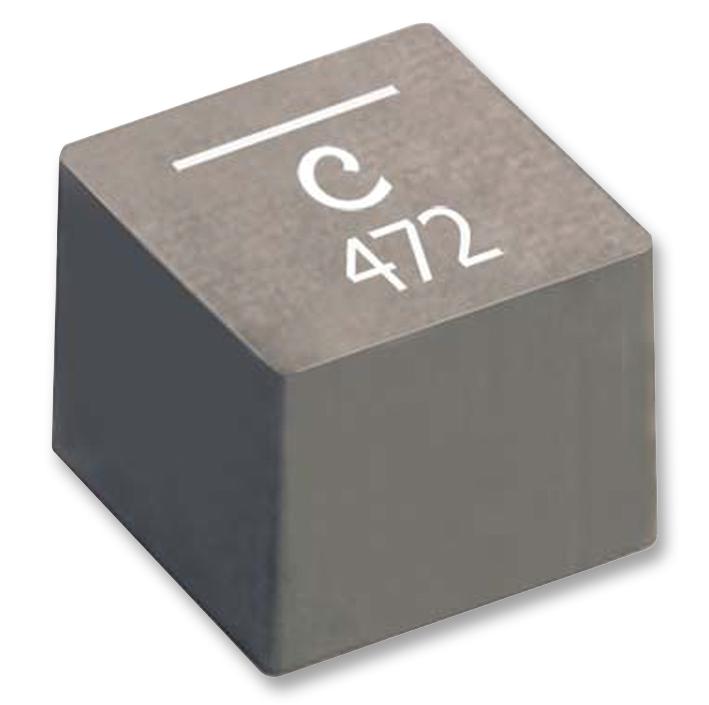

COILCRAFT - XAL7070-102MEC - Power Inductor (SMD), 1 µH, 25 A, Shielded, 34.8 A, XAL7070
- Inductance: 1µH
- RMS Current (Irms): 25A
- Inductor Construction: Shielded
- Saturation Current (Isat): 34.8A
- Product Range: XAL7070 Series
- Power Inductor Case: 7.5mm x 7.2mm x 7mm
- DC Resistance Max: 0.00281ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 64MHz
