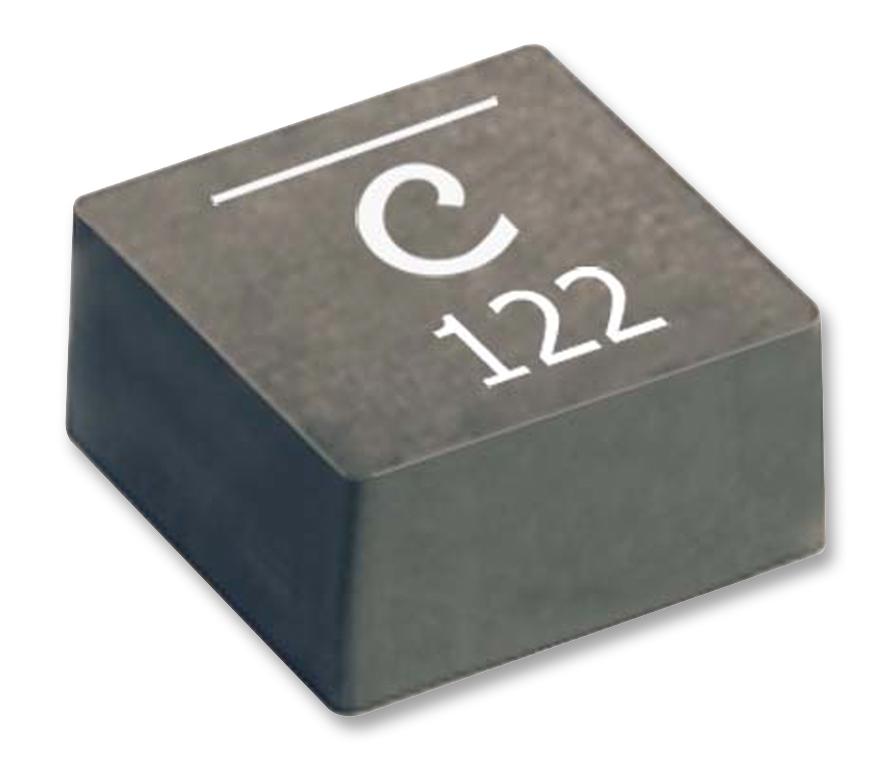

COILCRAFT - XAL5030-472MEC - Power Inductor (SMD), 4.7 µH, 5.9 A, Shielded, 6.7 A, XAL5030, 5.48mm x 5.28mm x 3.1mm
- Inductance: 4.7µH
- RMS Current (Irms): 5.9A
- Inductor Construction: Shielded
- Saturation Current (Isat): 6.7A
- Product Range: XAL5030 Series
- Power Inductor Case: 5.48mm x 5.28mm x 3.1mm
- DC Resistance Max: 0.036ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 23MHz
