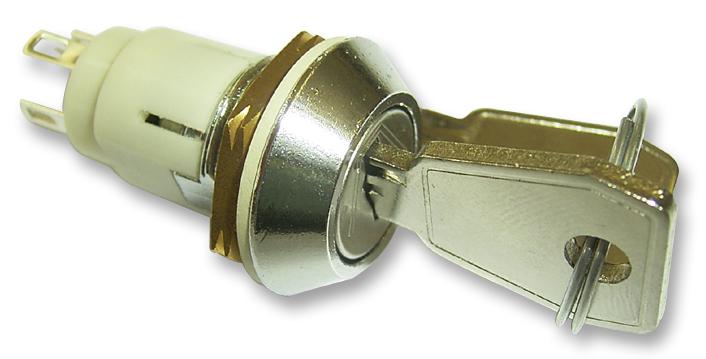

LORLIN - WRL-5-M-D-2 - Keylock Switch, DP4T, WRL, 4 Position, Solder, 1 A
- Switch Operation: -
- Contact Configuration: DPDT
- Product Range: WRL Series
- No. of Switch Positions: 1 Position
- Switch Terminals: Solder
- Contact Current Max: 1A
- Contact Voltage AC Nom: 115V
- Contact Voltage DC Nom: 50V
- Angle of Throw: 60°
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Flat
- Actuator Type: Flat
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 115VAC
- Contact Voltage DC Max: 50VDC
- Flammability Rating: UL 94 V0
- Full Angle: 60°
- IP / NEMA Rating: IP67
- Indexing Angle: 60°
- Insulation Resistance Voltage: 500VDC
- Material: Polyamide 6.6
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 10000
- No. of Positions: 1Ways
- Operating Position: 60°
- Operating Temperature Max: 65°C
- Operating Temperature Min: -20°C
- Panel Cutout Diameter: 16mm
- Panel Cutout Width: 13mm
- Panel Thickness Max: 4.5mm
- Pin Length: 7.2mm
- Proof Voltage: 750VDC
