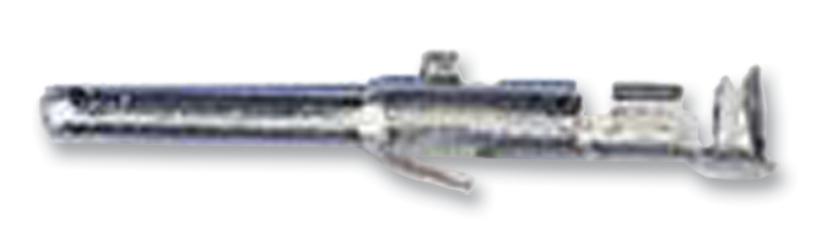

AMPHENOL SINE/TUCHEL - VN01 016 0004 1 - Circular Connector Contact, Standard, Ecomate, Crimp, 16 AWG, 20 AWG
- Product Range: Ecomate Series
- Contact Gender: -
- Contact Termination Type: Crimp
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 20AWG
- For Use With: Ecomate Series Circular Connectors
- Contact Plating: Silver Plated Contacts
- Contact Material: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Diameter Max: 2.8mm
- Cable Diameter Min: 1.8mm
- Colour: Silver
- Connector Type: Terminal
- Contact Termination: Crimp
- External Diameter: 1.6mm
- Wire Area Size Max: 1.5mm²
- Wire Area Size Min: 0.5mm²
- Wire Area Size Power Contact Max: 1.5mm²
- Wire Area Size Power Contact Min: 0.5mm²
