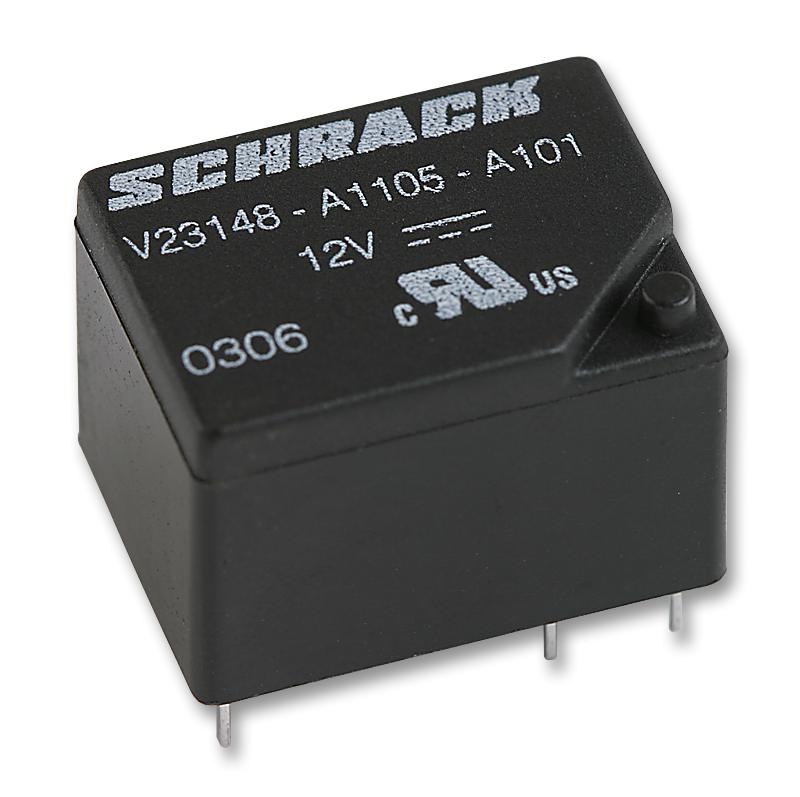

SCHRACK - TE CONNECTIVITY - 2-1393203-9 - General Purpose Relay, U/UB Series, Power, Non Latching, SPDT, 12 VDC, 5 A
- Contact Configuration: SPDT
 - Coil Voltage: 12VDC
 - Contact Current: 5A
 - Product Range: U/UB Series
 - Relay Mounting: Through Hole
 - Coil Type: Non Latching
 - Contact Voltage VAC: 250VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: -
 - Contact Material: Silver Nickel
 - Coil Resistance: 440ohm
 - SVHC: No SVHC (15-Jan-2019)
 - Approval Category: UL Recognised
 - Coil Operating Lower Percent Limit: 70%
 - Coil Operating Upper Percent Limit: 120%
 - Coil Voltage VDC Nom: 12V
 - Contact Current AC Max: 5A
 - Contact Current DC Max: 5A
 - Contact Current Max: 5A
 - Contact Voltage AC Max: 250V
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Max: 24V
 - Contact Voltage DC Nom: 24V
 - DC Coil Power: 330mW
 - Dielectric Strength VDC: 4kV
 - External Depth: 14.9mm
 - External Height: 21.2mm
 - External Length / Height: 21.2mm
 - External Width: 16.5mm
 - Nom Operating Power: 327mW
 - Operating Temperature Max: 70°C
 - Operating Temperature Min: -25°C
 - Operating Time: 7ms
 - PCB Hole Diameter: 1.5mm
 - Relay Type: Power
 - Release Time: 3ms
 - Weight: 9.5g
