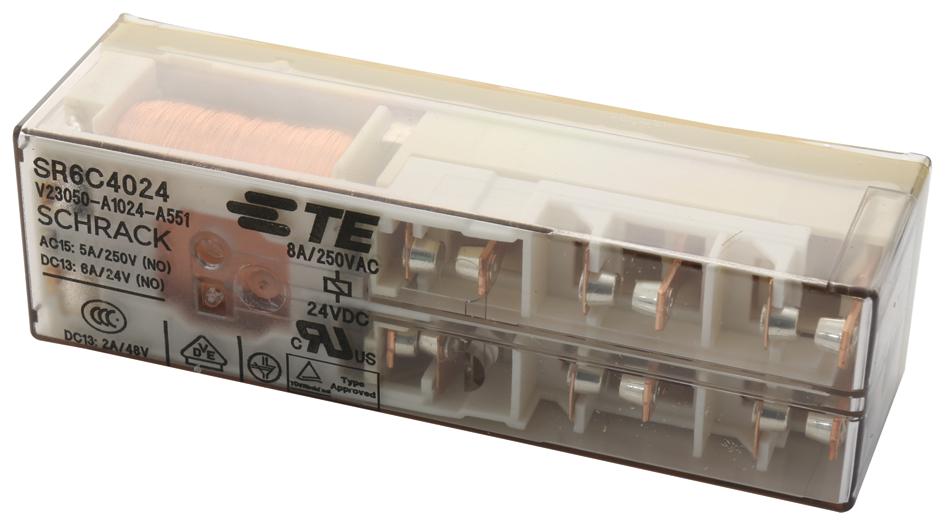

SCHRACK - TE CONNECTIVITY - 1415017-1 - Power Relay, Force-Guided, 5PST-NO, SPST-NC, 24 VDC, 8 A, SR6A, Through Hole, Non Latching
- Contact Configuration: 5PST-NO, SPST-NC
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: SR6A Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250V
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Tin Oxide
- Coil Resistance: 480ohm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: UL
