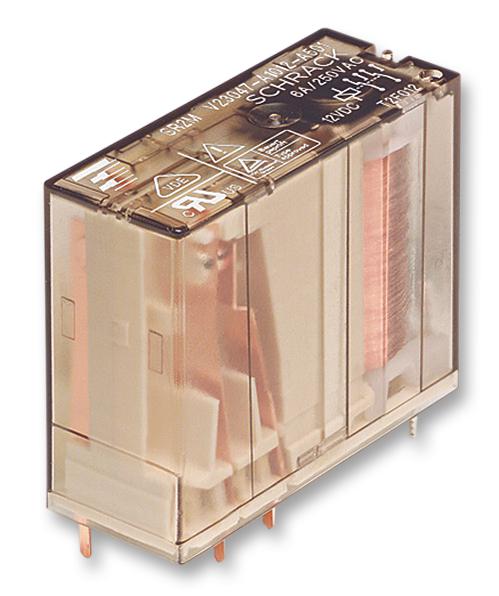

SCHRACK - TE CONNECTIVITY - V23047-A1012-A501 - Safety Relay, 12 VDC, DPDT, V23047, Through Hole, 6 A, Solder
- Coil Voltage: 12VDC
 - Contact Configuration: DPDT
 - Product Range: V23047 Series
 - Relay Mounting: Through Hole
 - Contact Current: 6A
 - Relay Terminals: Solder
 - Contact Voltage AC Nom: 250V
 - Contact Voltage DC Nom: 24V
 - Contact Material: Silver Nickel
 - IP Rating: -
 - SVHC: No SVHC (12-Jan-2017)
 - Approval Bodies: TUV, VDE
 - Approval Category: UL Recognised
 - Coil Resistance: 206ohm
 - Coil Voltage VDC Nom: 12V
 - Contact Current Max: 6A
 - Contact Current Min: 10mA
 - Contact Voltage AC Max: 240V
 - Current Rating: 6A
 - DC Coil Power: 699mW
 - Dielectric Voltage Coil to Contact: 4000VAC
 - Dielectric Voltage Contact to Contact: 1500VAC
 - External Depth: 29mm
 - External Height: 25.5mm
 - External Length / Height: 25.5mm
 - External Width: 12.6mm
 - Must Actuate Voltage: 9V
 - Must Release Voltage: 1.2V
 - Switch Current Max: 6A
 - Switching Capacity: 1500 VA
 - Switching Current Max: 6A
 - Switching Voltage AC / DC Max: 400VAC
 - Weight: 20g
