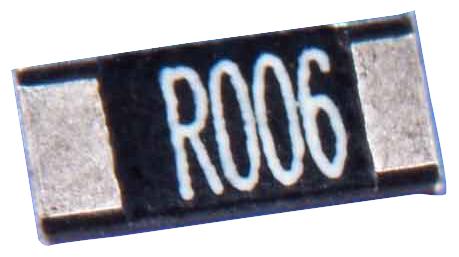

TT ELECTRONICS / WELWYN - ULR1S-R006FT2 - SMD Current Sense Resistor, 0.006 ohm, ULR, 1206 [3216 Metric], 1 W, ± 1%, Metal Strip
- Resistance: 0.006ohm
- Product Range: ULR Series
- Resistor Case Style: 1206 [3216 Metric]
- Power Rating: 1W
- Resistance Tolerance: ± 1%
- Resistor Element Material: Metal Strip
- Temperature Coefficient: ± 50ppm/°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.98mm
- External Length / Height: 3.2mm
- External Width: 1.6mm
- No. of Pins: 2Pins
- Operating Temperature Max: 170°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +170°C
- Resistor Mounting: Surface Mount Device
- Voltage Rating: 200V
