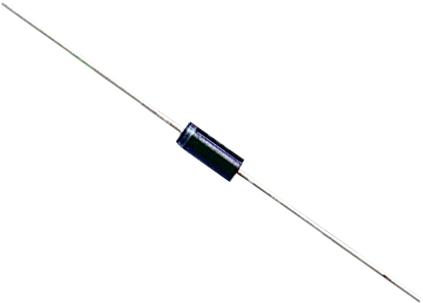

TAIWAN SEMICONDUCTOR - UF1G - Fast / Ultrafast Diode, 400 V, 1 A, Single, 1 V, 50 ns, 30 A
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2 Pin
- Product Range: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
