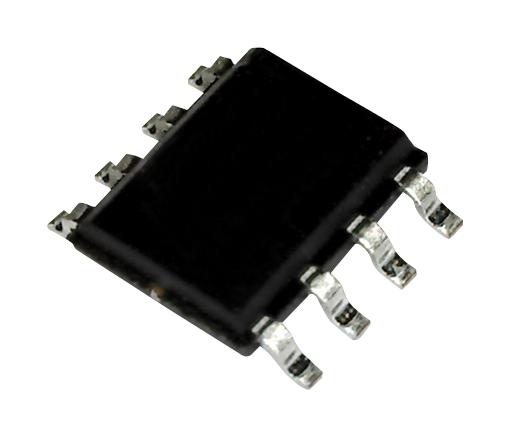

TEXAS INSTRUMENTS - UCC37324D - MOSFET Driver Dual, Low Side Inverting, 4V-15V supply, 4A peak out, 30 Ohm output, SOIC-8
- Driver Configuration: Low Side
- Peak Output Current: 4A
- Supply Voltage Min: 4V
- Supply Voltage Max: 15V
- Driver Case Style: SOIC
- No. of Pins: 8Pins
- Input Delay: 25ns
- Output Delay: 35ns
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 37324
- Device Type: MOSFET Driver
- IC Temperature Range: Commercial
- Module Configuration: Low Side
- No. of Channels: 2Channels
- No. of Drivers: 2Drivers
- No. of Outputs: 2Outputs
- Operating Temperature Range: 0°C to +70°C
- Output Resistance: 30ohm
- Output Voltage: 300mV
- Output Voltage Max: 450mV
- Power Dissipation Pd: 650mW
- Supply Voltage Range: 4V to 15V
- Termination Type: Surface Mount Device
