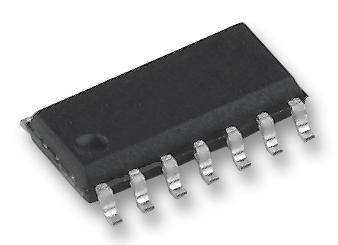

TEXAS INSTRUMENTS - UC2845D - PWM Controller Current Mode, 25V-12V supply, 500 kHz, 13.5V/200mA out, SOIC-14
- Input Voltage: 25V
- Output Voltage: 13.5V
- Output Current: 200mA
- Supply Voltage Min: 12V
- Supply Voltage Max: 25V
- Controller IC Case Style: SOIC
- No. of Pins: 14Pins
- Frequency: 500kHz
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 2845
- Controller Type: PWM
- Input Current: 11mA
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 1A
- Output Energy per Cycle: 5µJ
- Output Type: Totem Pole
- Power Dissipation Pd: 725mW
- Supply Voltage Range: 12V to 25V
- Termination Type: Surface Mount Device
