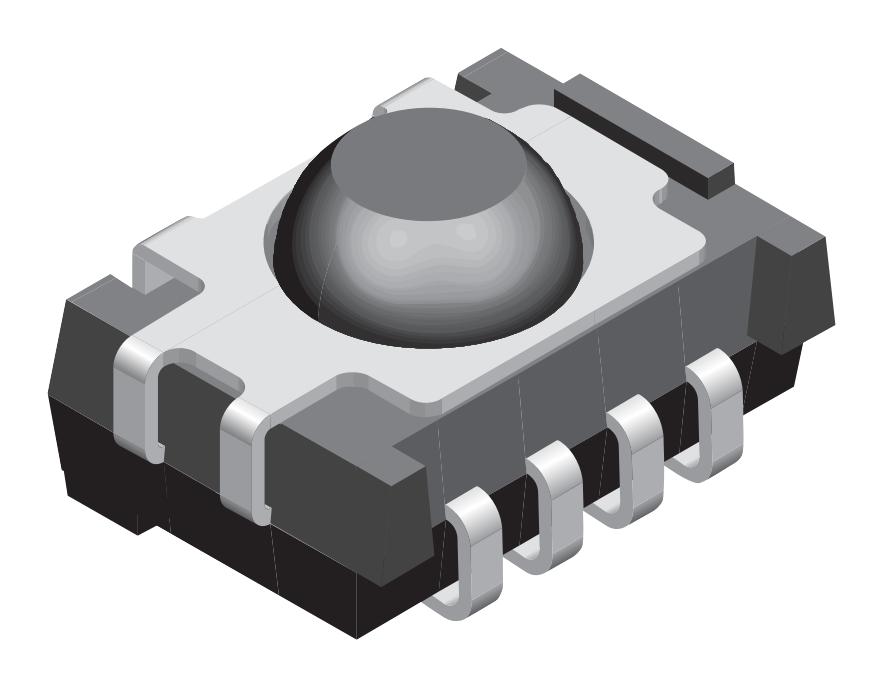

VISHAY - TSOP6238TT - Infrared Receiver, 38 kHz, Top or Side View Surface Mount
- Carrier Frequency: 38kHz
- IR Receiver Mounting Style: Top or Side View Surface Mount
- Remote Control Code: RC-5, RC-6, Panasonic, NEC, Sharp, r-step, Thomson RCA
- Transmission Range: 40m
- Automatic Gain Control (AGC) Type: AGC2
- Detection Threshold / Sensitivity: 0.2mW/m²
- Directivity: 50°
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.5V
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Supply Current: 800µA
- Product Range: TSOP62 Series
- SVHC: No SVHC (15-Jan-2019)
