description

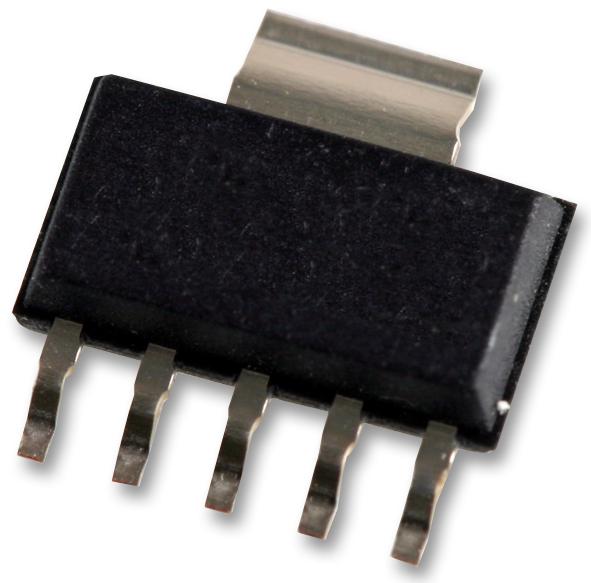

TEXAS INSTRUMENTS - TPS73701DCQ - LDO Voltage Regulator, Adjustable, 2.2V to 5.5V in, 130mV drop, 1.2V to 5.5V/1A out, SOT-223-6
- Output Type: Adjustable
- Input Voltage Min: 2.2V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.2V
- Adjustable Output Voltage Max: 5.5V
- Output Current: 1A
- Dropout Voltage Vdo: 130mV
- LDO Regulator Case Style: SOT-223
- No. of Pins: 6Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 3%
- Base Number: 73701
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 5.5V
- Output Voltage Max: 5.5V
- Output Voltage Min: 1.2V
- Primary Input Voltage: 5.5V
- Supply Voltage Min: 2.2V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Adjustable Positive
