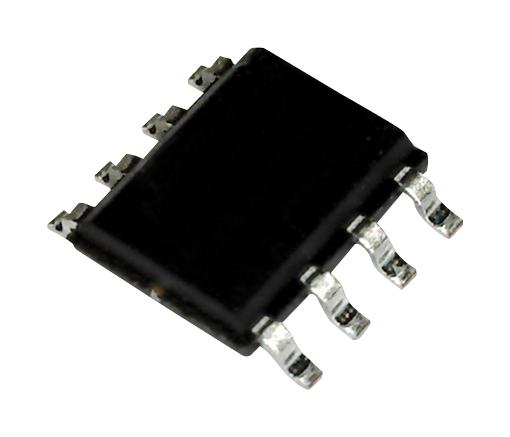

TEXAS INSTRUMENTS - TPS5420D - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 5.5V-36Vin, 1.22V-31Vout, 2Aout, SOIC-8
- Topology: Buck (Step Down)
- Input Voltage Min: 5.5V
- Input Voltage Max: 36V
- No. of Outputs: 1Outputs
- DC / DC Converter IC Case: SOIC
- No. of Pins: 8Pins
- Output Current: 2A
- Output Voltage Min: 1.22V
- Output Voltage Max: 31V
- Switching Frequency: 500kHz
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 1.5%
- Adjustable Output Voltage Min: 1.22V
- Base Number: 5420
- Frequency: 500kHz
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 31V
- Primary Input Voltage: 36V
- Supply Voltage Min: 5.5V
- Switch Output Current Isw Max: 3A
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Adjustable
