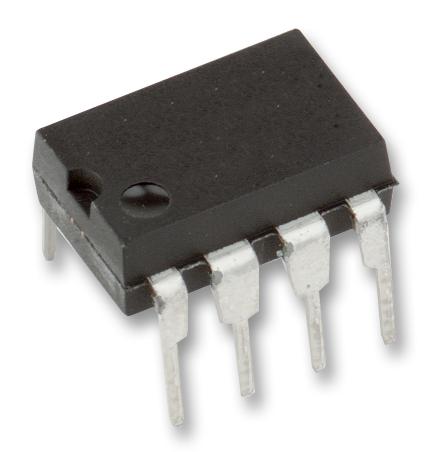

POWER INTEGRATIONS - TOP242PN - AC/DC Off-Line Switcher IC, TOPSwitch-GX, Flyback, 85 VAC - 265 VAC, 132 kHz, 720 mA out, 15W, DIP-8
- Input Voltage AC Min: 85V
- Input Voltage AC Max: 265V
- AC / DC Converter Case Style: DIP
- No. of Pins: 8Pins
- Power Rating: 15W
- Topology: Flyback
- Operating Temperature Min: -40°C
- Operating Temperature Max: 150°C
- Product Range: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 242
- Current Temperature: 25°C
- Drain Current: 50mA
- Frequency: 132kHz
- IC Generic Number: 242
- Input Voltage Max: 265VAC
- Logic Function Number: 242
- No. of Outputs: 1Outputs
- On Resistance Rds(on): 15.6ohm
- Operating Temperature Range: -40°C to +150°C
- Output Current: 720mA
- Output Current Max: 400µA
- Output Voltage: 700V
- Peak Drain Current: 0.72A
- Power Output Open Framed @ 230VAC: 15W
- Power Output Open Framed @ 85-265VAC: 10W
- Power Supply IC Type: Off-line Switcher
- Power Supply Type: Off-Line Switcher
- Resistance Temperature: 25°C
- Supply Voltage Min: 36V
- Voltage Drain Peak Max: 700V
- Voltage Drain Peak Min: -0.3V
