description

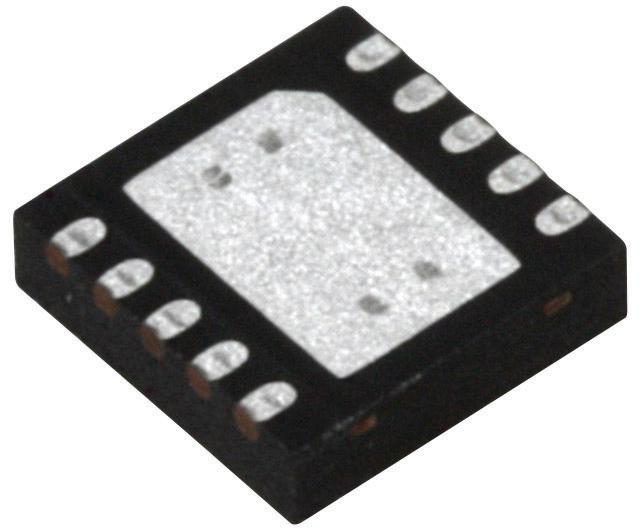

INFINEON - TLS203B0LDVXUMA1 - LDO Voltage Regulator, Adjustable, AEC-Q100, 2.3 V to 20 V, 270 mV Dropout, 0.3 A out,TSON-10
- Output Type: Adjustable
- Input Voltage Min: 2.3V
- Input Voltage Max: 20V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.22V
- Adjustable Output Voltage Max: 20V
- Output Current: 300mA
- Dropout Voltage Vdo: 270mV
- LDO Regulator Case Style: TSON
- No. of Pins: 10Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 150°C
- Product Range: Adj 300mA LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 2A - 4 weeks
- SVHC: No SVHC (27-Jun-2018)
