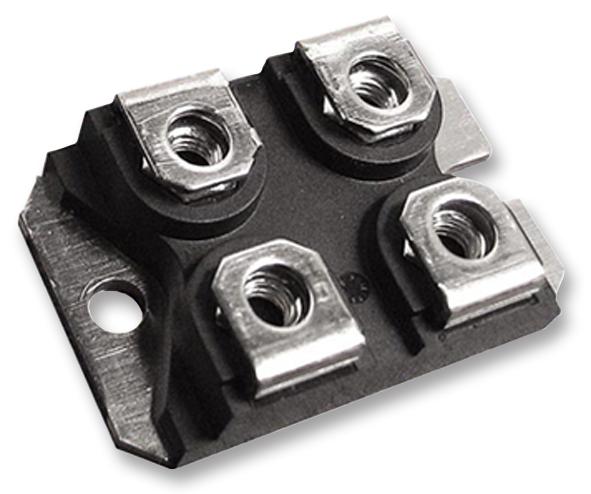

OHMITE - TGHGCR0500FE - Resistor, 0.05 ohm, TGHG, 100 W, ± 1%
- Resistance: 0.05ohm
- Product Range: TGHG Series
- Power Rating: 100W
- Resistor Element Material: Thick Film
- Resistor Case Style: SOT-227
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 60ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 12mm
- External Length / Height: 38.1mm
- External Width: 24.9mm
- No. of Pins: 4Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Panel
- Resistor Terminals: Screw
