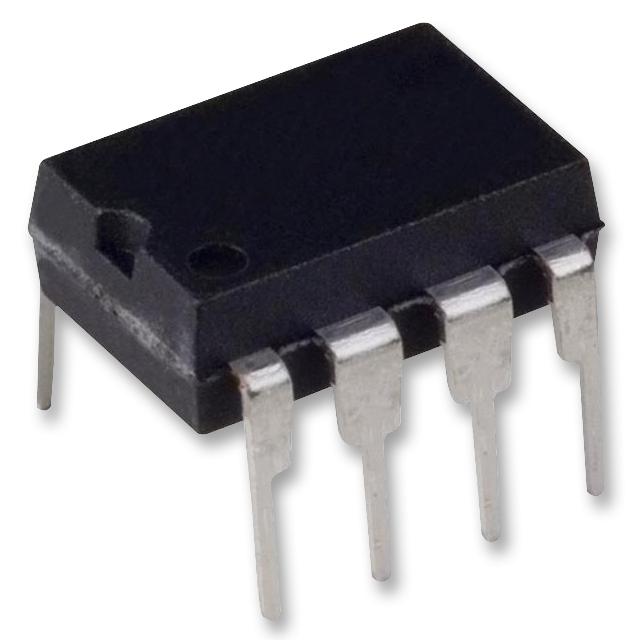

MICROCHIP - TC4424CPA - Dual MOSFET Driver IC, Driver, Low Side, 4.5V-18V Supply, 3A Out, 38ns Delay, DIP-8
- Driver Configuration: Low Side
- Peak Output Current: 3A
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 18V
- Driver Case Style: DIP
- No. of Pins: 8Pins
- Input Delay: 33ns
- Output Delay: 38ns
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 4424
- Device Type: MOSFET Driver
- Fall Time tf: 25ns
- Module Configuration: Low Side
- No. of Channels: 2Channels
- No. of Outputs: 2Outputs
- Operating Temperature Range: 0°C to +70°C
- Output Resistance: 3.5ohm
- Power Dissipation Pd: 730mW
- Rise Time: 23ns
- Supply Voltage Range: 4.5V to 18V
- Termination Type: Through Hole
