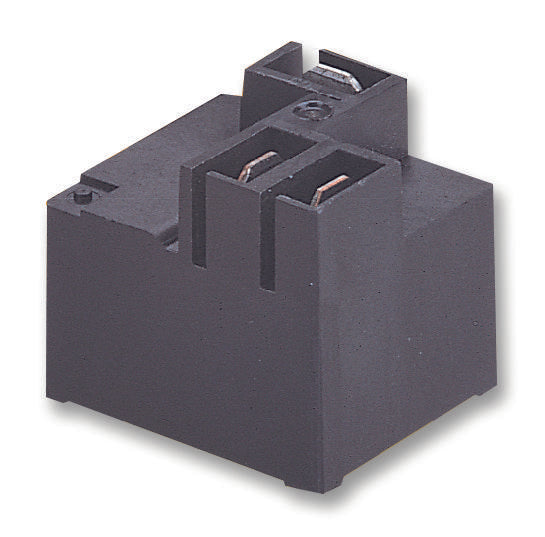

POTTER&BRUMFIELD - TE CONNECTIVITY - T9AS1D22-12 - Power Relay, SPST-NO, 12 VDC, 30 A, T9A Series, Through Hole, Non Latching
- Contact Configuration: SPST-NO
 - Coil Voltage: 12VDC
 - Contact Current: 30A
 - Product Range: T9A Series
 - Relay Mounting: Through Hole
 - Coil Type: Non Latching
 - Contact Voltage VAC: 240VAC
 - Relay Terminals: Solder
 - Contact Voltage VDC: 28VDC
 - Contact Material: Silver Cadmium Oxide
 - Coil Resistance: 144ohm
 - SVHC: Cadmium oxide (27-Jun-2018)
 - Approval Bodies: CSA, UL
 - Approvals & Standards: CSA, UL
 - Coil Current: 83mA
 - Coil Operating Lower Percent Limit: 75%
 - Coil Operating Upper Percent Limit: 110%
 - Coil Voltage VDC Nom: 12V
 - Contact Current AC Max: 30A
 - Contact Current DC Max: 30A
 - Contact Current Max: 30A
 - Contact Voltage AC Max: 240V
 - Contact Voltage AC Nom: 240V
 - Contact Voltage DC Max: 28V
 - DC Coil Power: 1W
 - Dielectric Voltage Coil to Contact: 2500VAC
 - Dielectric Voltage Contact to Contact: 1500VAC
 - External Depth: 28mm
 - External Height: 32mm
 - External Length / Height: 32mm
 - External Width: 27mm
 - Lead Spacing: 0.8mm
 - Nom Operating Power: 1W
 - Operating Temperature Max: 85°C
 - Operating Time: 15ms
