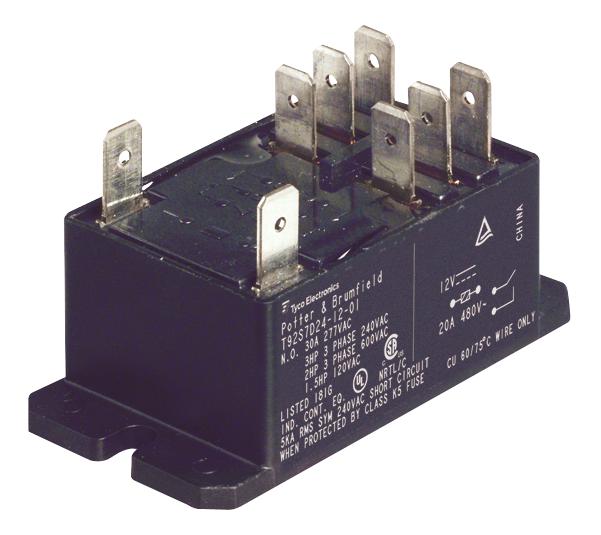

POTTER&BRUMFIELD - TE CONNECTIVITY - 6-1393211-9 - Power Relay, DPST-NO, 12 VDC, 30 A, T92, Panel Mount, Non Latching
- Contact Configuration: DPST-NO
 - Coil Voltage: 12VDC
 - Contact Current: 30A
 - Product Range: T92 Series
 - Relay Mounting: Panel
 - Coil Type: Non Latching
 - Contact Voltage VAC: 277VAC
 - Relay Terminals: Quick Connect
 - Contact Voltage VDC: 28VDC
 - Contact Material: Silver Cadmium Oxide
 - Coil Resistance: 86ohm
 - SVHC: Cadmium oxide (27-Jun-2018)
 - Approvals & Standards: CSA, UL, VDE
 - Coil Operating Lower Percent Limit: 80%
 - Coil Operating Upper Percent Limit: 110%
 - Coil Voltage VDC Nom: 12V
 - Contact Current AC Max: 30A
 - Contact Current DC Max: 20A
 - Contact Current Max: 40A
 - Contact Voltage AC Max: 240V
 - Contact Voltage AC Nom: 600V
 - Contact Voltage DC Max: 28V
 - Contact Voltage DC Nom: 28V
 - DC Coil Power: 1.55W
 - Dielectric Strength VDC: 4000V
 - External Depth: 26mm
 - External Height: 69mm
 - External Length / Height: 69mm
 - External Width: 34mm
 - Flammability Rating: UL94V-0
 - Nom Operating Power: 1.7W
 - Operating Temperature Max: 65°C
 - Operating Temperature Min: -40°C
 - Operating Time: 15ms
 - Release Time: 10ms
