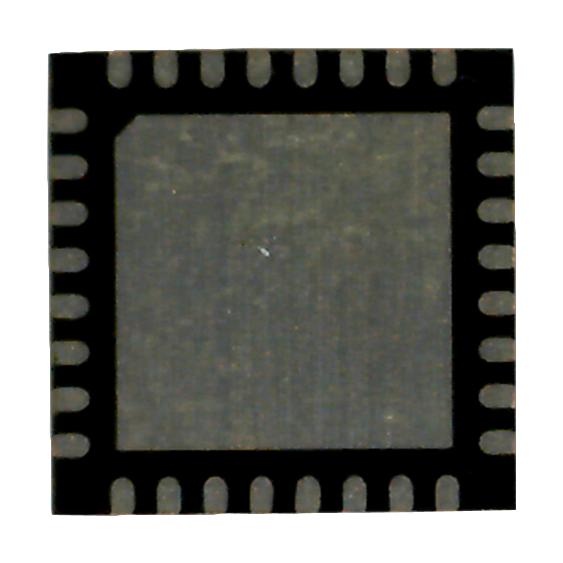

SEMTECH - SX1211I084TRT - RF Transceiver, 863Mhz to 960Mhz, FSK, OOK, 200Kbps, 12.5dBm out, 2.1V to 3.6V, TQFN-32
- Frequency Min: 863MHz
- Frequency Max: 960MHz
- RF / IF Modulation: FSK, OOK
- Data Rate: 200Kbps
- Receiving Current: 3mA
- RF IC Case Style: TQFN
- No. of Pins: 32Pins
- Supply Voltage Min: 2.1V
- Supply Voltage Max: 3.6V
- Transmitting Current: 25mA
- Output Power (dBm): 12.5dBm
- Sensitivity dBm: -110dBm
- RF Transceiver Applications: AMR, Home Automation, Low Power Telemetry, Wireless Alarm & Security System
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Modulation Type: FSK, OOK
