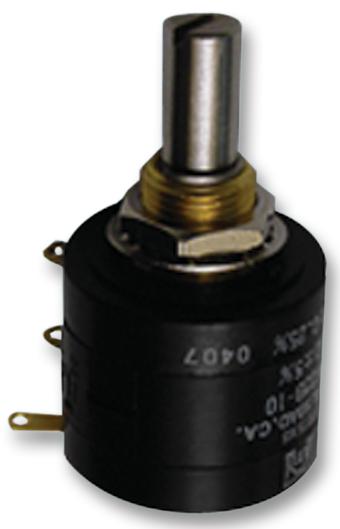

ETI SYSTEMS - SW22E-5K - Rotary Potentiometer, Wirewound, 5 kohm, 1 Turns, Linear, 500 mW, ± 3%, SW22E
- Track Resistance: 5kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 500mW
- Resistance Tolerance: ± 3%
- Product Range: SW22E Series
- Potentiometer Mounting: Servo
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.63mm
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 21.84mm
- External Length / Height: 12.19mm
- Linearity, +: 0.5%
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +105°C
- Resistor Element Material: Wirewound
- Rotation Electrical Angle: 320°
- Rotation Mechanical Angle: 320°
- Rotational Life Cycles: 500000
- Temperature Coeff. +: 20ppm/°C
- Temperature Coeff. -: 20ppm/°C
- Temperature Coefficient: ± 20ppm/°C
- Termination Type: Solder
- Tolerance +: 3%
- Tolerance -: 3%
