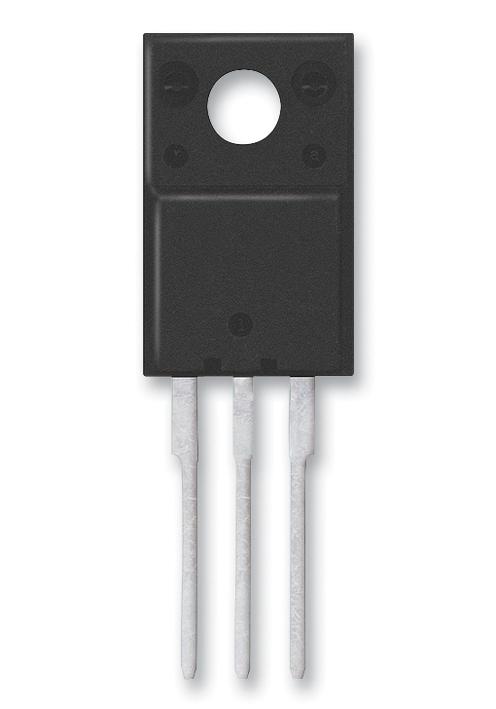

STMICROELECTRONICS - STFU9N65M2 - Power MOSFET, N Channel, 650 V, 5 A, 0.79 ohm, TO-220FP, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 5A
- Drain Source Voltage Vds: 650V
- On Resistance Rds(on): 0.79ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 20W
- Transistor Case Style: TO-220FP
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
