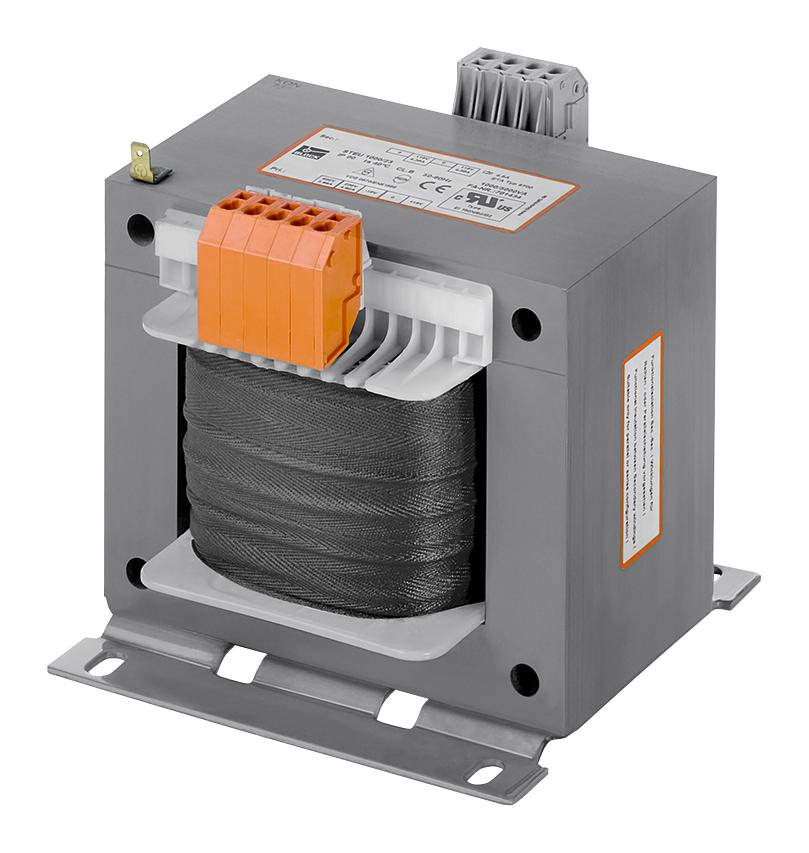

BLOCK - STEU1600/23 - Chassis Mount Transformer, Control, Open Style Control and Safety Isolating, 230V, 400V, 2 x 115V
- Power Rating: 1.6kVA
- Secondary Voltages: 2 x 115V
- Current Rating: 6.96A
- Isolation Transformer Primary Voltages: 1 x 230V, 1 x 400V
- Plug Type: -
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- AC Power: 1600VA
- Approval Bodies: EN, IEC, UL, VDE
- External Depth: 161mm
- External Length / Height: 180.5mm
- External Width: 192mm
- Fixing Centres LxW: 156 x 133
- Height: 180.5mm
- Input Voltage: 400V
- Insulation Class: VDE - B, UL - 130
- Multiple Output Voltages: 2 x 115V
- Operating Temperature Max: 40°C
- Output Voltage: 115V
- Primary Voltages: 1 x 400V
- Protection Type: IP 000
- Regulation: 94%
- Secondary No Load Voltage: 1.01V
- Secondary Power: 1.6kVA
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Test Voltage: 4500VAC
- Transformer Type: Isolation
- Type: Open
- Weight: 20.8kg
