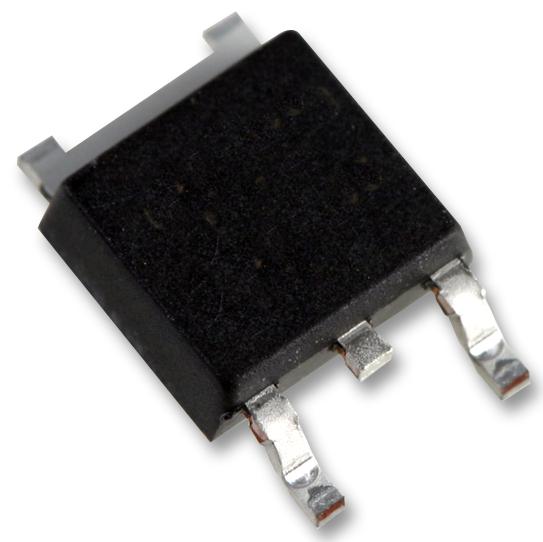

STMICROELECTRONICS - STB55NF06LT4 - Power MOSFET, N Channel, 30 V, 55 A, 0.014 ohm, TO-263 (D2PAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 55A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.014ohm
- Rds(on) Test Voltage Vgs: 16V
- Threshold Voltage Vgs: 1.7V
- Power Dissipation Pd: 95W
- Transistor Case Style: TO-263
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 55A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Termination Type: Surface Mount Device
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 1.7V
- Voltage Vgs Rds on Measurement: 10V
