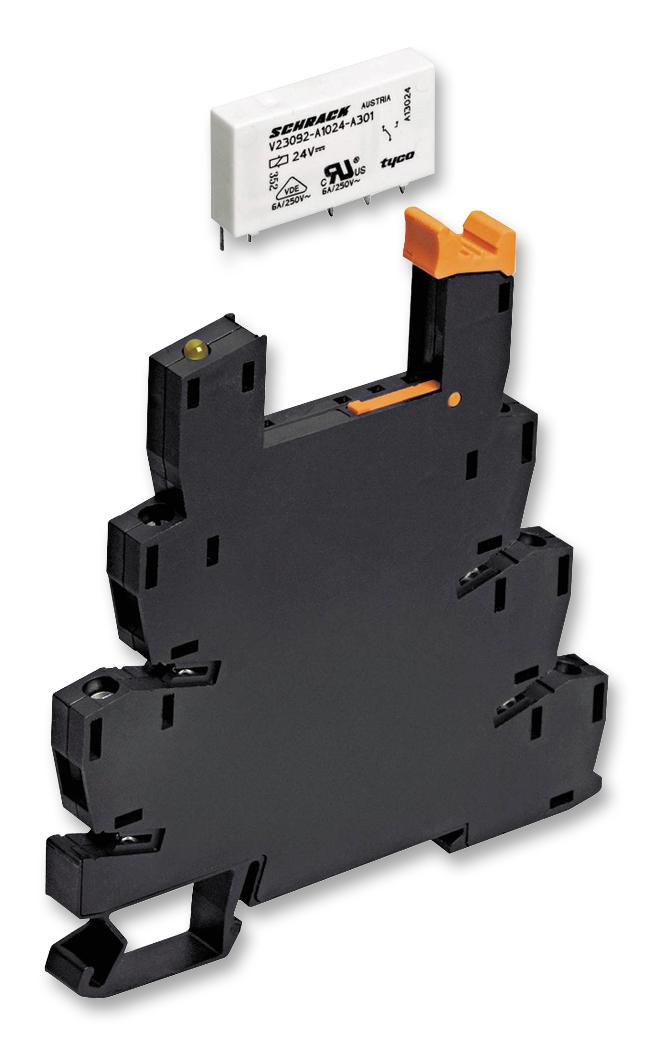

SCHRACK - TE CONNECTIVITY - 3-1416100-1 - General Purpose Relay, ST Series, Interface, Non Latching, SPDT, 12 VDC, 6 A
- Contact Configuration: SPDT
- Coil Voltage: 12VDC
- Contact Current: 6A
- Product Range: ST Series
- Relay Mounting: DIN Rail
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Contact Material: Silver Tin Oxide
- Coil Resistance: 848ohm
- Accessory Type: Module
- Approval Bodies: VDE
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 6A
- Contact Current Max: 6A
- Contact Voltage AC Nom: 240V
- Current Rating: 6A
- External Depth: 80mm
- External Height: 94mm
- External Length / Height: 94mm
- External Width: 6.2mm
- Relay Type: Interface
