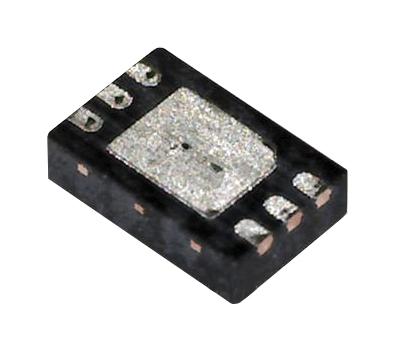

ST1L05BPUR LDO, ADJ, 1.22V-5.5V, 1.3A, DFN-6 STMICROELECTRONICS

STMICROELECTRONICSUGS :ST1L05BPUR Code de commande:2762706

Prix:
Prix ​​promotionnel€2,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2934 unité)

Documents et téléchargements

description

STMICROELECTRONICS - ST1L05BPUR - Adjustable LDO Voltage Regulator, 3 V to 5.5 V, 300 mV Drop, 1.22 V to 5.5 V / 1.3 A out, DFN-6

  • Output Type: Adjustable
  • Input Voltage Min: 3V
  • Input Voltage Max: 5.5V
  • Fixed Output Voltage Nom.: -
  • Adjustable Output Voltage Min: 1.22V
  • Adjustable Output Voltage Max: 5.5V
  • Output Current: 1.3A
  • Dropout Voltage Vdo: 300mV
  • LDO Regulator Case Style: DFN
  • No. of Pins: 6Pins
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 125°C
  • Product Range: Adj 1.3A LDO Voltage Regulators
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • MSL: -
  • SVHC: No SVHC (12-Jan-2017)
