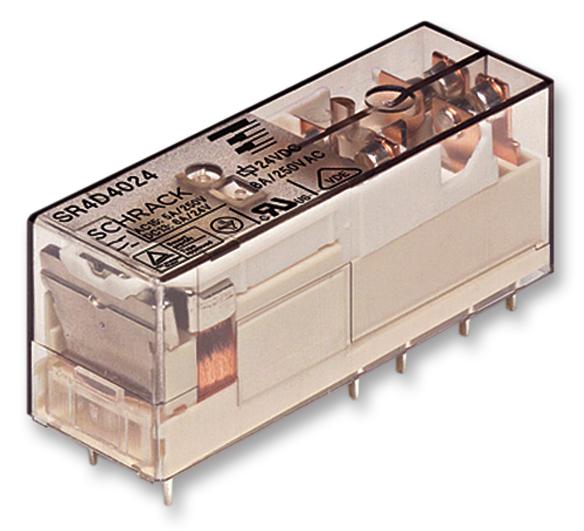

SCHRACK - TE CONNECTIVITY - 4-1415053-1 - Safety Relay, 24 VDC, 3PST-NO, SPST-NC, SR4 D/M, Through Hole, 8 A, Solder
- Coil Voltage: 24VDC
- Contact Configuration: 3PST-NO, SPST-NC
- Product Range: SR4 D/M Series
- Relay Mounting: Through Hole
- Contact Current: 8A
- Relay Terminals: Solder
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Material: Silver Tin Oxide
- IP Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: TUV, VDE
- Approval Category: UL Recognised
- Coil Resistance: 720ohm
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current Max: 8A
- Contact Current Min: 10mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 400V
- Current Rating: 8A
- DC Coil Power: 800mW
- Dielectric Voltage Coil to Contact: 4000VAC
- Dielectric Voltage Contact to Contact: 1500VAC
- External Depth: 40mm
- External Height: 16.5mm
- External Length / Height: 16mm
- External Width: 13mm
- Insulation Resistance: 100Mohm
- Mechanical Life: 10,000,000 Operations
- Must Actuate Voltage: 18V
- Must Release Voltage: 2.4V
- No. of Mechanical Operations: 10000000
- Operating Temperature Max: 70°C
- Operating Time: 12ms
