SMW23R3JT Res, 3R3, 5%, 2W, 2616, Wirewound CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :SMW23R3JT Code de commande:1086281

Prix:
Prix ​​promotionnel€0,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1599 unité)

Documents et téléchargements

description

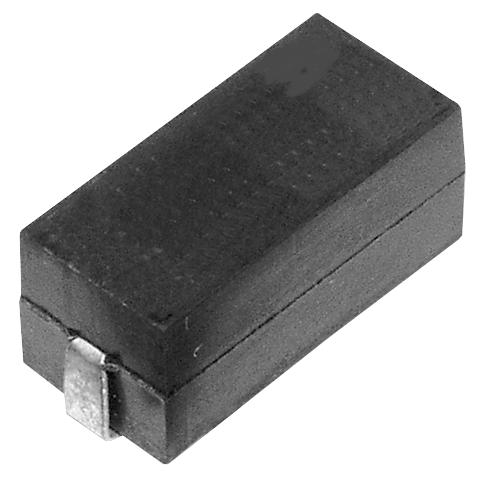

CGS - TE CONNECTIVITY - SMW23R3JT - SMD Chip Resistor, 3.3 ohm, ± 5%, 2 W, 2616 [6740 Metric], Wirewound, High Power

  • Resistor Case Style: 2616 [6740 Metric]
  • Resistance: 3.3ohm
  • Product Range: SMW Series
  • Voltage Rating: 300V
  • Resistor Element Material: Wirewound
  • Power Rating: 2W
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 200ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 3.55mm
  • External Length / Height: 6.7mm
  • External Width: 4mm
  • Insulation Resistance: 10000Mohm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 200ppm/°C
  • Temperature Coeff. -: 200ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 300V
