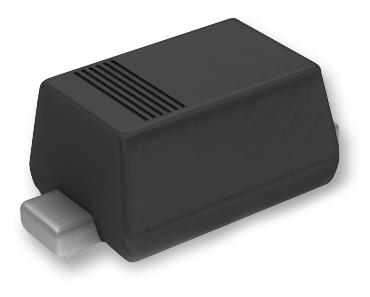

SKYWORKS SOLUTIONS - SMV1249-079LF - Variable Capacitance Diode, Hyperabrupt, 2.8 pF, 20 mA, 15 V, 125 °C, SC-79, 2 Pin
- Capacitance Cd Max @ Vr F: 2.8pF
- Forward Current If(AV): 20mA
- Repetitive Reverse Voltage Vrrm Max: 15V
- Operating Temperature Max: 125°C
- Diode Case Style: SC-79
- No. of Pins: 2 Pin
- Product Range: SMV12 Series
- Capacitance Ct: 2.8pF
- Diode Configuration: Single
- Diode Type: RF Varactor
- Forward Test Current If: 20mA
- No. of Pins: 2Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistance @ If: 2.2ohm
- Reverse Voltage Vr Max: 15V
- Termination Type: Surface Mount Device
