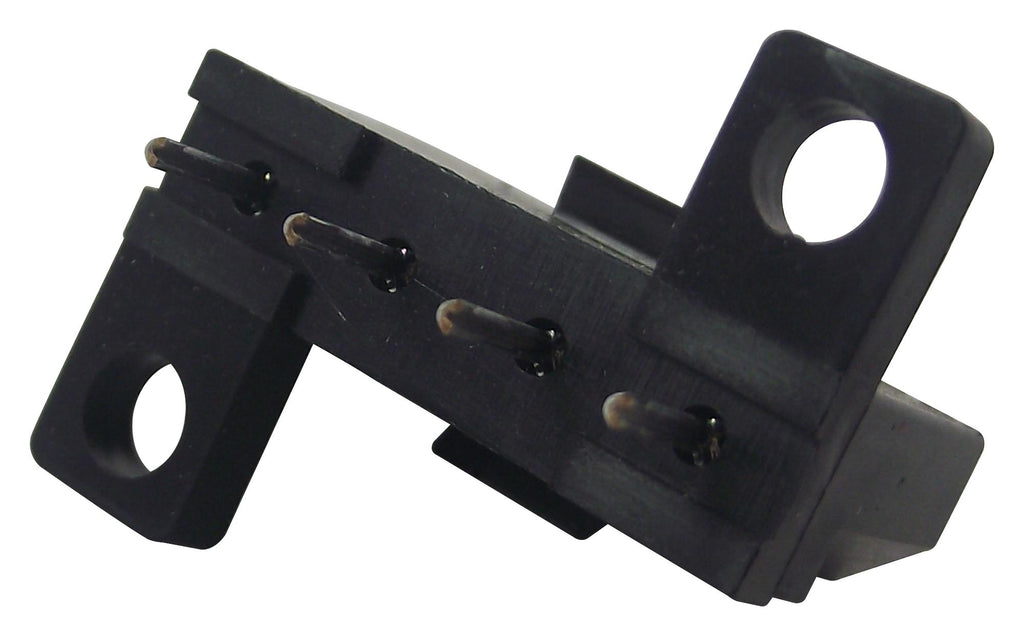

SOURIAU-SUNBANK / EATON - SMS4RE3TR29 - Rectangular Power Connector, 4 Contacts, Souriau Qikmate SMS, Cable Mount, Crimp, 5.08 mm
- No. of Contacts: 4Contacts
- Product Range: Qikmate Series
- Connector Mounting: Cable Mount
- Contact Termination Type: Crimp
- Pitch Spacing: 5.08mm
- Gender: Receptacle
- Contact Gender: Socket
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- Connector Shell Size: 4
- No. of Rows: 1Rows
- SVHC: Lead (15-Jan-2019)
- Colour: Black
- Contact Resistance: 6mohm
- Contact Termination: Through Hole Vertical
- Current Rating: 5A
- Flammability Rating: UL94V-2
- For Use With: Souriau SMS Series Stamped & Formed Contacts
- Lead Spacing: 5.08mm
- Material: Polyamide
- No. of Positions: 4Ways
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
