SMF2470RJT Res, 470R, 5%, 2W, 2616, Metal Film CGS - Te Connectivity

CGS - TE CONNECTIVITYUGS :SMF2470RJT Code de commande:1086310

Prix:
Prix ​​promotionnel€0,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (15 unité)

Documents et téléchargements

description

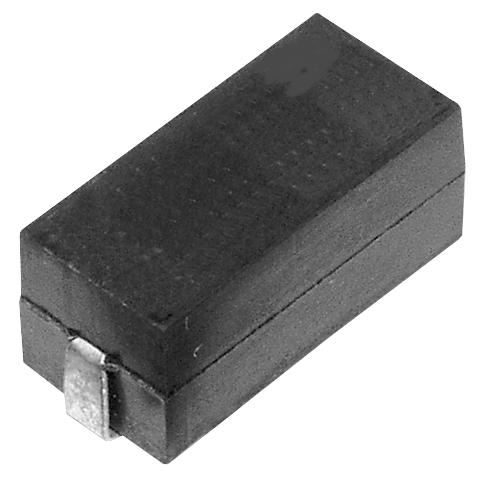

CGS - TE CONNECTIVITY - SMF2470RJT - SMD Chip Resistor, 470 ohm, ± 5%, 2 W, 2616 [6740 Metric], Metal Film, High Power

  • Resistor Case Style: 2616 [6740 Metric]
  • Resistance: 470ohm
  • Product Range: SMF Series
  • Voltage Rating: 300V
  • Resistor Element Material: Metal Film
  • Power Rating: 2W
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 3.55mm
  • External Length / Height: 6.7mm
  • External Width: 4mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 300V
