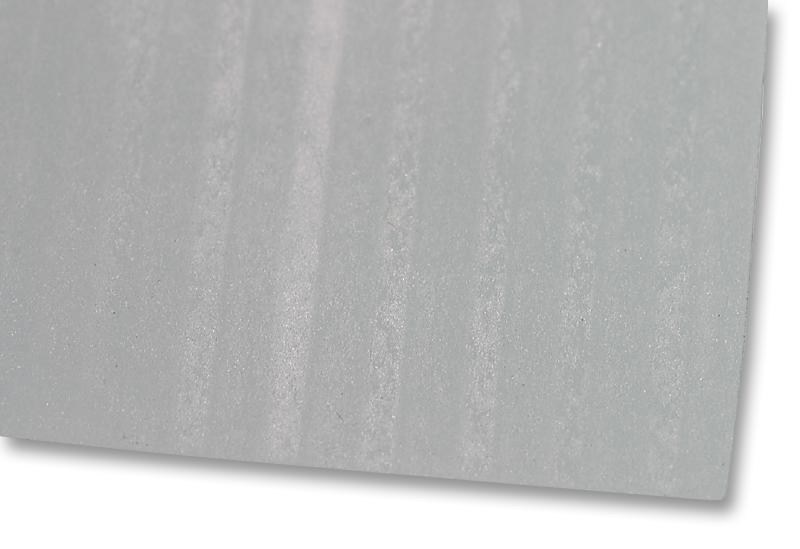

BERGQUIST - SIL-PAD K6 300MMX300MM SHEET - SIL-PAD K-6, .006", 12"X12" SHEET
- Insulator Body Material: PI (Polyimide) Film
- Thermal Conductivity: 1.1W/m.K
- Breakdown Voltage Vbr: 6kV
- Thickness: 0.152mm
- Volume Resistivity: 1000000Mohm-m
- Thermal Impedance: -
- Dielectric Strength: -
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Electrical Property Ins / Con: Insulative
- External Depth: 0.15mm
- External Length / Height: 24mm
- External Width: 300mm
- Isolation Voltage: 6kV
- Length: 300mm
- Material: Kapton MT Film
- Operating Temperature Max: 180°C
- Operating Temperature Min: -60°C
- Operating Temperature Range: -60°C to +180°C
- Overall Width: 300mm
- Peak Wavelength: 830nm
- Thermal Resistance: 0.3°C/W
- Type: Thermal Pad
- Wavelength Typ: 850nm
