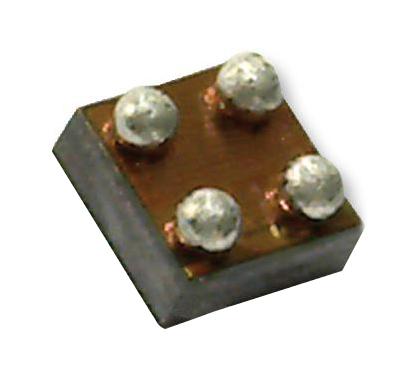

VISHAY - SI8424CDB-T1-E1 - Power MOSFET, N Channel, 8 V, 10 A, 0.015 ohm, MICRO FOOT, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 10A
- Drain Source Voltage Vds: 8V
- On Resistance Rds(on): 0.015ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 800mV
- Power Dissipation Pd: 2.7W
- Transistor Case Style: MICRO FOOT
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: TrenchFET Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (20-Jun-2016)
