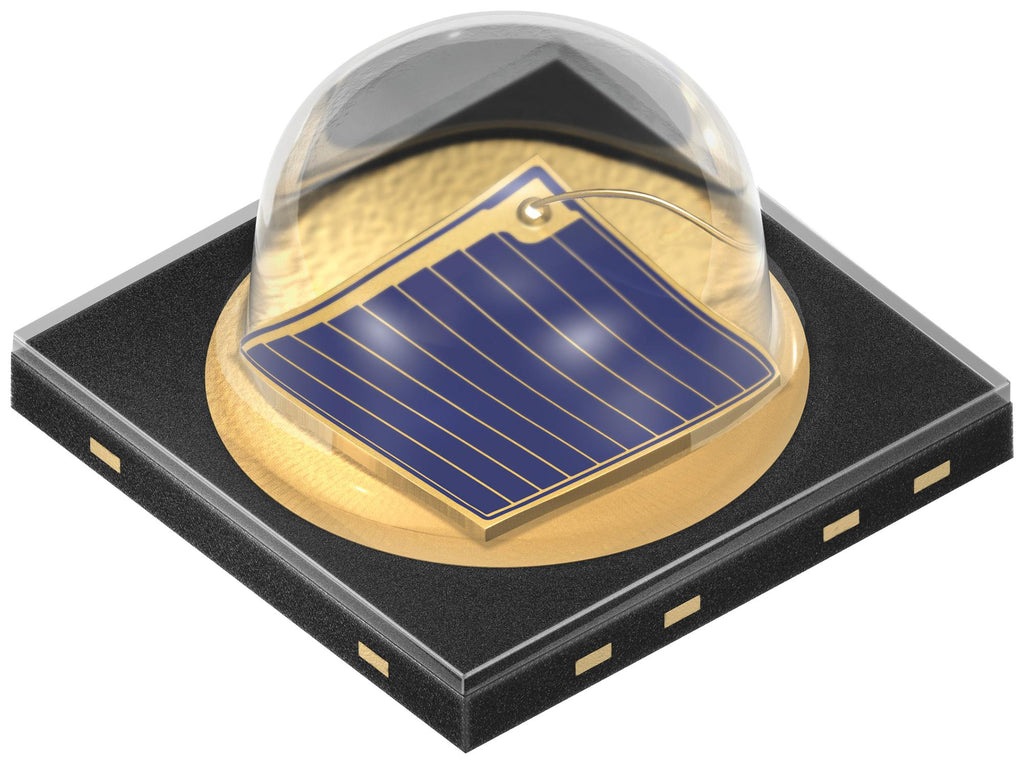

AMS OSRAM GROUP - SFH 4715A-CBDA - Infrared Emitter, 860 nm, 90 °, SMD, 415 mW/Sr, 11 ns, 14 ns
- Peak Wavelength: 860nm
- Angle of Half Intensity: 90°
- Diode Case Style: SMD
- Radiant Intensity (Ie): 415mW/Sr
- Rise Time: 11ns
- Fall Time tf: 14ns
- Forward Current If(AV): 2A
- Forward Voltage VF Max: 2.1V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: AEC-Q101
- Product Range: OSLON Black Series
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (27-Jun-2018)
- Viewing Angle: 90°
