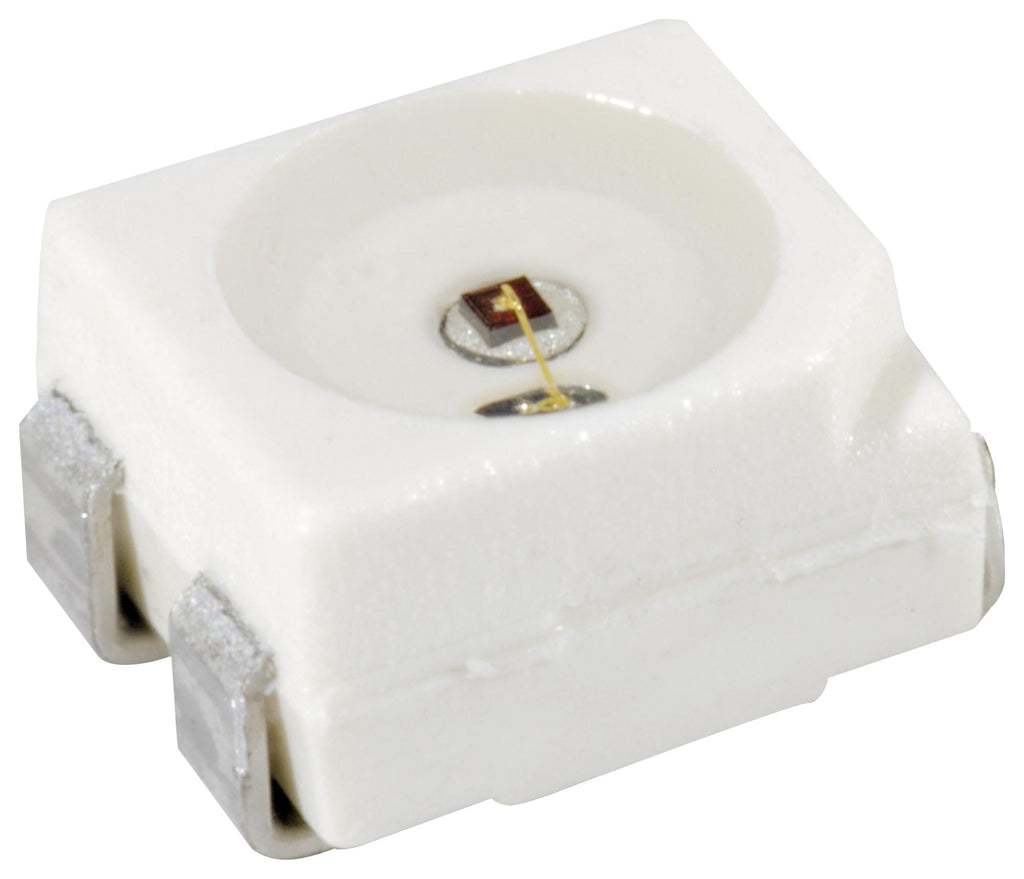

AMS OSRAM GROUP - SFH 4240-Z - Infrared Emitter, 950 nm, 120 °, SMD, 18 mW/Sr, 12 ns, 12 ns
- Peak Wavelength: 950nm
- Angle of Half Intensity: 120°
- Diode Case Style: SMD
- Radiant Intensity (Ie): 18mW/Sr
- Rise Time: 12ns
- Fall Time tf: 12ns
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 1.8V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: AEC-Q101
- Product Range: TOPLED Series
- SVHC: No SVHC (27-Jun-2018)
- Viewing Angle: 120°
