description

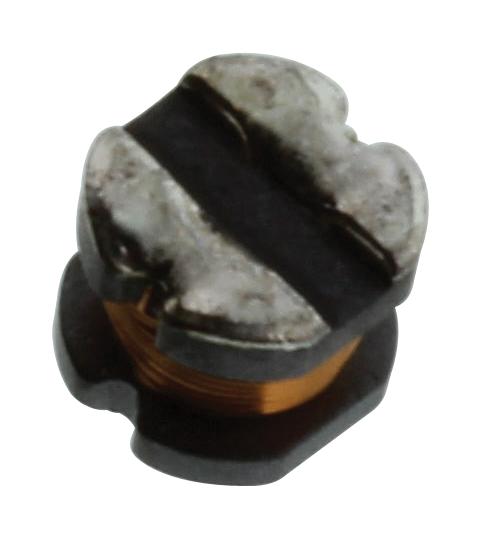

BOURNS - SDR1307-120ML - Power Inductor (SMD), 12 µH, 4.8 A, Unshielded, 8 A, SDR1307
- Inductance: 12µH
- RMS Current (Irms): 4.8A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 8A
- Product Range: SDR1307 Series
- Power Inductor Case: 13mm x 13mm x 7mm
- DC Resistance Max: 0.03ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 25
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 20MHz
