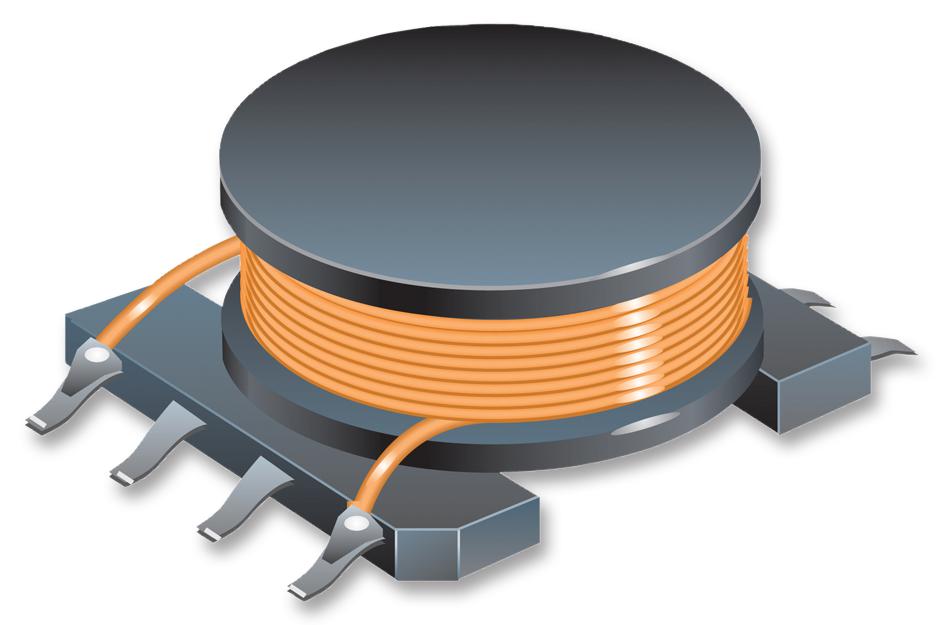

BOURNS - SDR0906-101KL - Power Inductor (SMD), 100 µH, 900 mA, Unshielded, 1.1 A, SDR0906
- Inductance: 100µH
- RMS Current (Irms): 900mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.1A
- Product Range: SDR0906 Series
- Power Inductor Case: 11mm x 10.5mm x 6.3mm
- DC Resistance Max: 0.39ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 8Pins
- Q Factor: 15
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 8MHz
