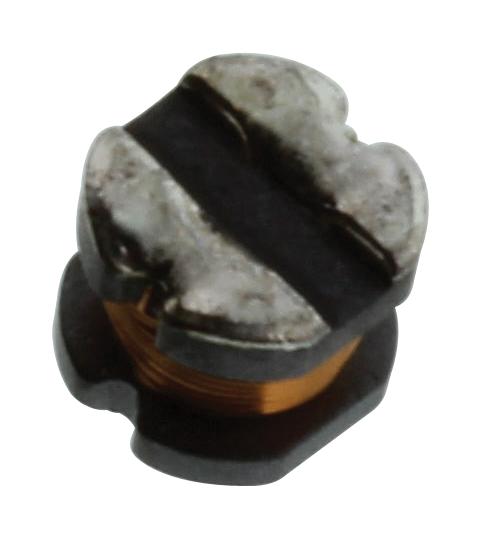

BOURNS - SDR0503-182JL - Power Inductor (SMD), 1.8 mH, 55 mA, Unshielded, 70 mA, SDR0503, 5mm x 4.8mm x 3mm
- Inductance: 1.8mH
- RMS Current (Irms): 55mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 70mA
- Product Range: SDR0503 Series
- Power Inductor Case: 5mm x 4.8mm x 3mm
- DC Resistance Max: 15ohm
- Inductance Tolerance: ± 5%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 40
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 2MHz
