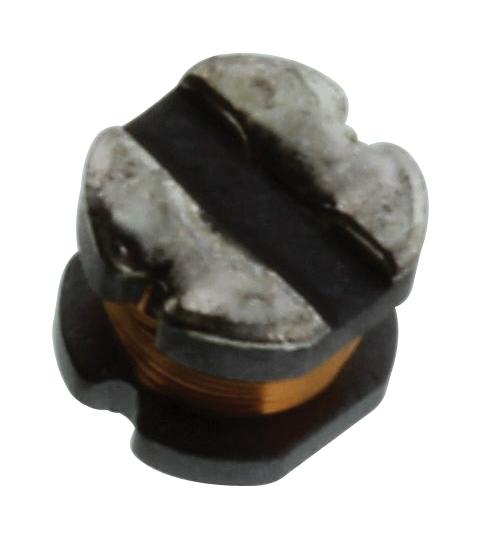

BOURNS - SDR0503-152JL - Power Inductor (SMD), 1.5 mH, 59 mA, Unshielded, 72 mA, SDR0503
- Inductance: 1.5mH
- RMS Current (Irms): 59mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 72mA
- Product Range: SDR0503 Series
- Power Inductor Case: 5mm x 4.8mm x 3mm
- DC Resistance Max: 13ohm
- Inductance Tolerance: ± 5%
- SVHC: No SVHC (07-Jul-2017)
- Q Factor: 40
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 2MHz
