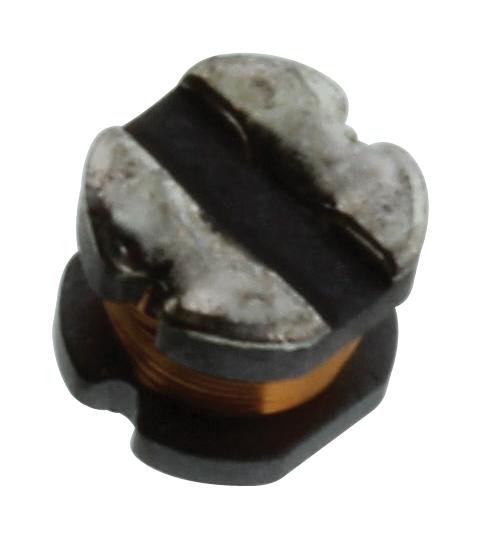

BOURNS - SDR0403-390KL - Power Inductor (SMD), 39 µH, 590 mA, Unshielded, 920 mA, SDR0403
- Inductance: 39µH
- RMS Current (Irms): 590mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 920mA
- Product Range: SDR0403 Series
- Power Inductor Case: 4.5mm x 4mm x 3.2mm
- DC Resistance Max: 0.59ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 20
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 14MHz
