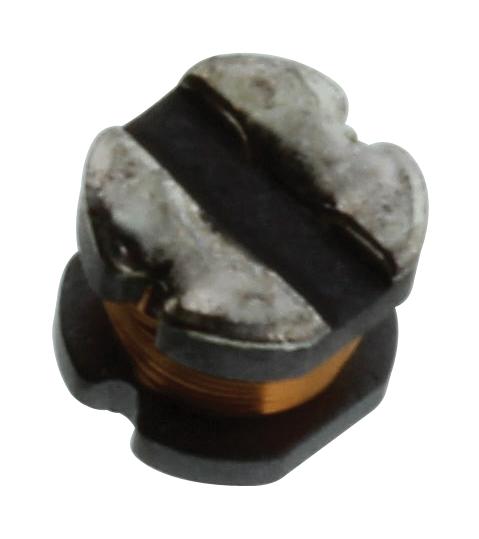

BOURNS - SDR0403-101KL - Power Inductor (SMD), 100 µH, 350 mA, Unshielded, 510 mA, SDR0403, 4.5mm x 4mm x 3.2mm
- Inductance: 100µH
- RMS Current (Irms): 350mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 510mA
- Product Range: SDR0403 Series
- Power Inductor Case: 4.5mm x 4mm x 3.2mm
- DC Resistance Max: 1.9ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
