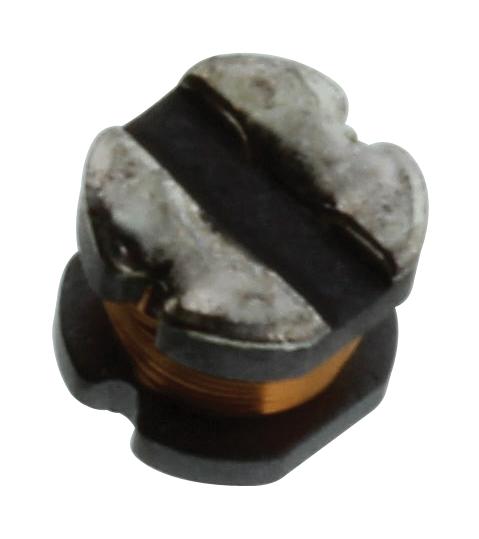

BOURNS - SDR0302-2R7ML - Power Inductor (SMD), 2.7 µH, 1.5 A, Unshielded, 1.7 A, SDR0302
- Inductance: 2.7µH
- RMS Current (Irms): 1.5A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.7A
- Product Range: SDR0302 Series
- Power Inductor Case: 3mm x 2.8mm x 2.5mm
- DC Resistance Max: 0.1ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 22
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 72MHz
