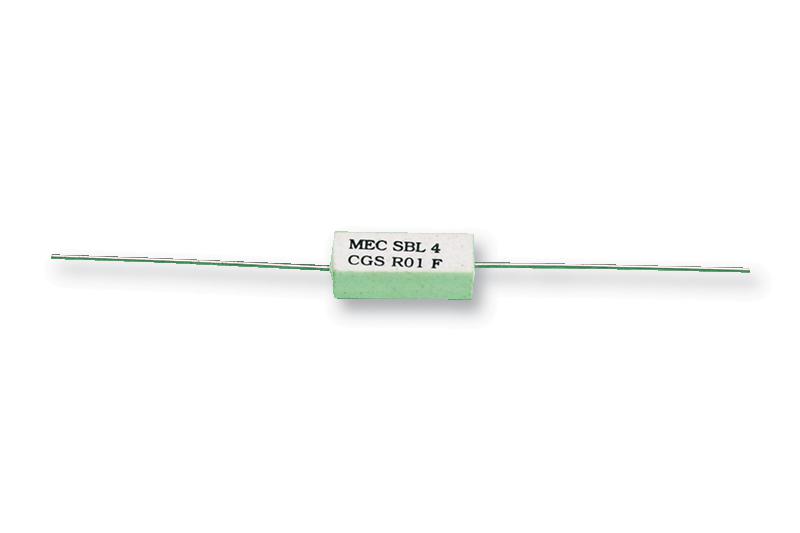

CGS - TE CONNECTIVITY - SBL4R022J - Through Hole Resistor, 0.022 ohm, SBL, 4 W, ± 5%, Axial Leaded, 300 mV
- Resistance: 0.022ohm
- Product Range: SBL Series
- Power Rating: 4W
- Resistance Tolerance: ± 5%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 300mV
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 6.4mm
- External Length / Height: 20mm
- External Width: 6.4mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 1000Mohm
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 250°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +250°C
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
