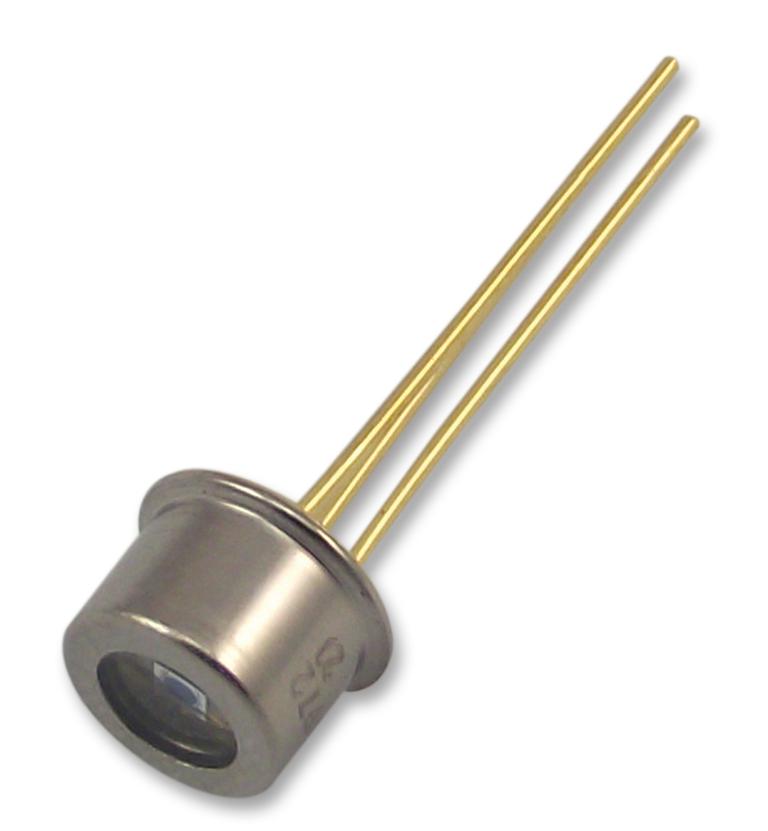

HAMAMATSU - S5972 - Photodiode, 10 pA, 800 nm, TO-18-3
- No. of Pins: 3Pins
- Diode Case Style: TO-18
- Wavelength of Peak Sensitivity: 800nm
- Angle of Half Sensitivity ±: -
- Dark Current: 10pA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Active Area: 0.5mm²
- Bandwidth: 500MHz
- External Diameter: 5.4mm
- External Length / Height: 3.6mm
- Lead Length: 13mm
- Lead Spacing: 2.54mm
- Operating Temperature Range: -40°C to +100°C
- Peak Wavelength: 800nm
- Reverse Voltage Vr Max: 20V
- Sensitivity: 0.57A/W
- Wavelength Typ: 800nm
