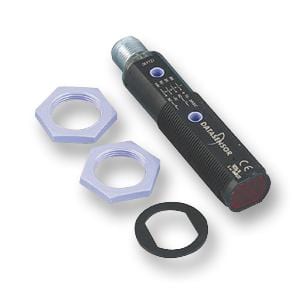

DATASENSOR - S50-PA-5-C01-PP - Photoelectric Sensor, S50 Series, Tubular, Optoelectronic, 700 mm, PNP, 10 V to 30 V
- Sensing Range Max: 700mm
- Sensing Method: Diffuse
- Sensor Output: PNP
- Product Range: S50 Series
- Connection Method: M12 Connector
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 30V
- SVHC: No SVHC (15-Jan-2018)
- External Diameter: 18mm
- External Length / Height: 79mm
- Frequency Response Max: 1kHz
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Output Current Max: 100mA
- Sensing Distance Max: 700mm
- Sensing Distance Min: 0mm
- Sensing Range: 0mm to 700mm
- Sensor Input: Optical
- Supply Voltage Range DC: 10V to 30V
- Thread Size: M18
